一、概述
片式给油器适用于小型机器设备的干油集中润滑系统，与单线干油泵或多点干油泵配合使用，组成单线集中润滑系统，可自动向最多约100个润滑点定时、定量地供送润滑脂。每块给油器上均设有指示装置，可及时检查出油情况。
|
|
|
二、技术参数
|
|
|
型号
|
组合片数
|
给油孔数
|
公称压力Mpa
|
每孔给油量ml/循环
|
重量kg
|
|
PSQ-31
|
3
|
6
|
10
|
0.15
|
0.9
|
|
PSQ-41
|
4
|
8
|
1.2
|
|
PSQ-51
|
5
|
10
|
1.8
|
|
PSQ-61
|
6
|
12
|
1.8
|
|
PSQ-31A
|
3
|
6
|
0.3
|
0.9
|
|
PSQ-41A
|
4
|
8
|
1.2
|
|
PSQ-51A
|
5
|
10
|
1.5
|
|
PSQ-61A
|
6
|
12
|
1.8
|
|
PSQ-33
|
3
|
6
|
0.5
|
6.8
|
|
PSQ-43
|
4
|
8
|
11.3
|
|
PSQ-53
|
5
|
10
|
12.2
|
|
PSQ-63
|
6
|
12
|
13.7
|
|
PSQ-33A
|
3
|
6
|
1.2
|
6.8
|
|
PSQ-43A
|
4
|
8
|
11.3
|
|
PSQ-53A
|
5
|
10
|
12.2
|
|
PSQ-63A
|
6
|
12
|
13.7
|
|
PSQ-33B
|
3
|
6
|
2.0
|
6.8
|
|
PSQ-43B
|
4
|
8
|
11.3
|
|
PSQ-53B
|
5
|
10
|
12.2
|
|
PSQ-63B
|
6
|
12
|
13.7
|
|
|
|
|

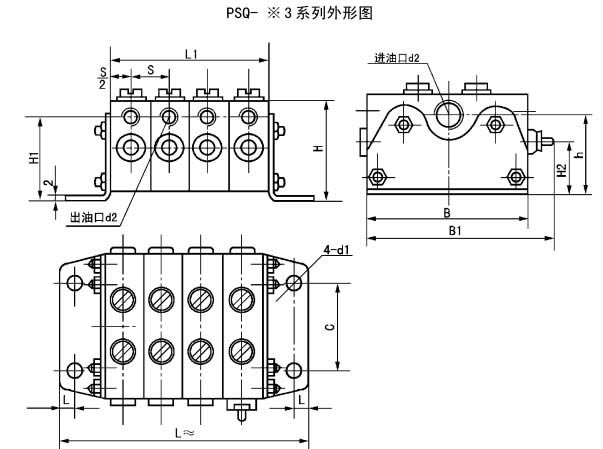

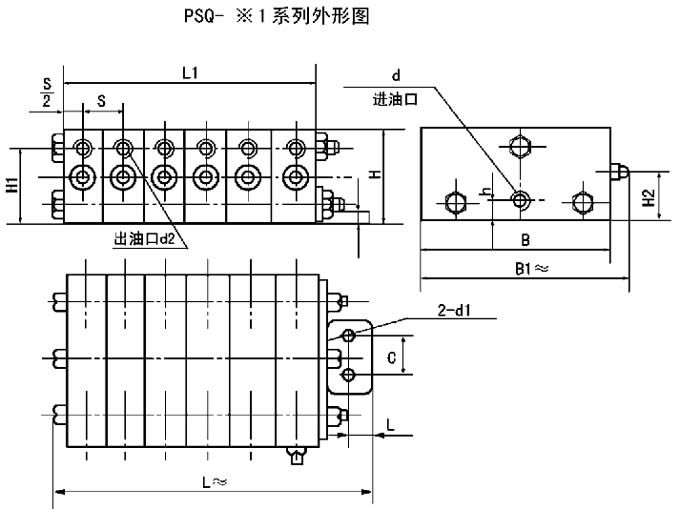

三、外形尺寸
|
|
|
|
型号
|
B
|
B1
|
C
|
L
|
L1
|
H
|
H1
|
H2
|
h
|
s
|
d
|
d1
|
d2
|
L2
|
|
PSQ-31
|
70
|
75/81
|
15
|
70
|
48
|
38
|
31
|
18
|
8
|
16
|
M10x1
|
7
|
M10x1
|
9
|
|
PSQ-41
|
86
|
64
|
|
PSQ-51
|
102
|
80
|
|
PSQ-61
|
118
|
96
|
|
PSQ-33
|
100
|
123/133
|
60
|
1335
|
75
|
68
|
57.5
|
30
|
54.5
|
25
|
M15x1.5
|
9
|
M14x1.5
|
10
|
|
PSQ-43
|
160
|
100
|
|
PSQ-53
|
185
|
125
|
|
PSQ-63
|
210
|
150
|
|
|
|
四、使用说明
1、给油器出油情况可通过观察指示装置进行检查，也可装设电气行程开关监控。

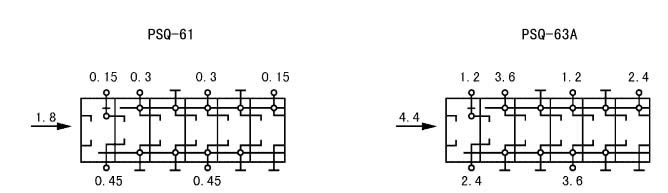

2、如某些润滑点需要的润滑脂量大于表列数值，可将给油器任意组合（见附图）。使供油量成倍增加。
|
|
|
|
